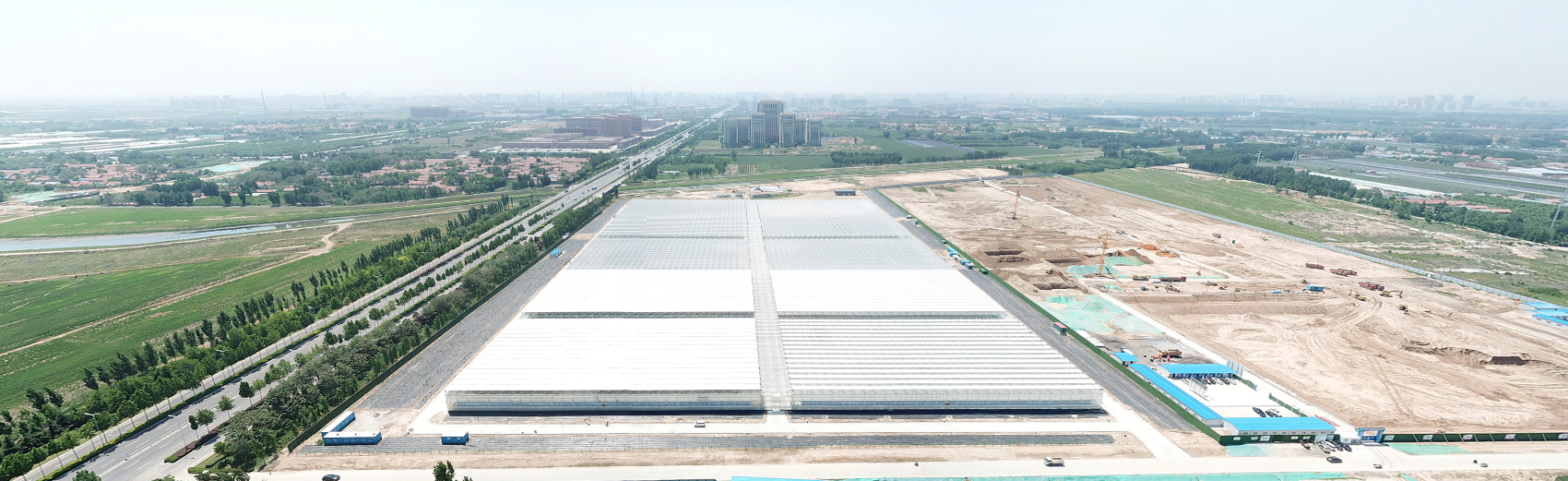

High-tech Cultivation Nursery

Location: Qinghai, Shandong, China

Date: 2019/05 ~ 2019/09

Type: Venlo glasshouse

Total area: 90,720 m²

    Production area 53,760 m²

    Demonstration area: 15,360 m²

    Storage area: 7,680 m²

    Internal corridor: 10,208 m²

    Open-air corridor: 3,712 m²

Supporting systems and equipment:

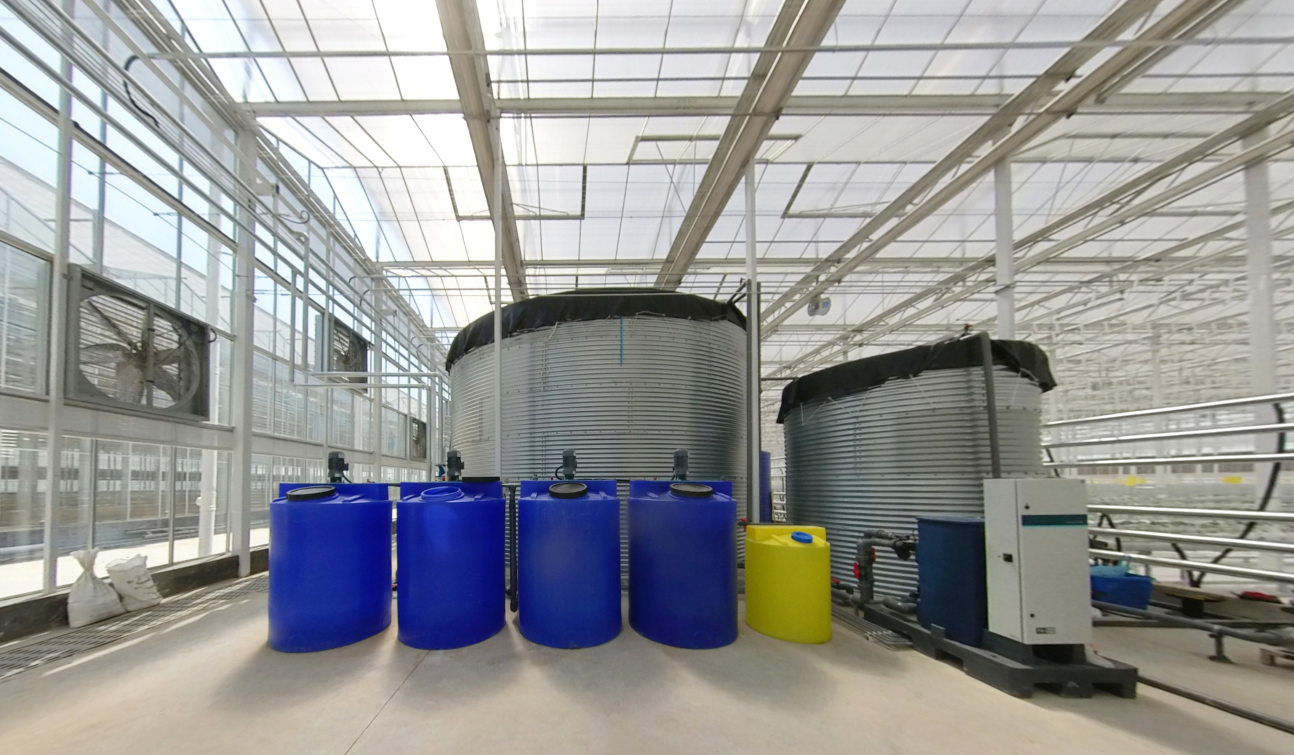

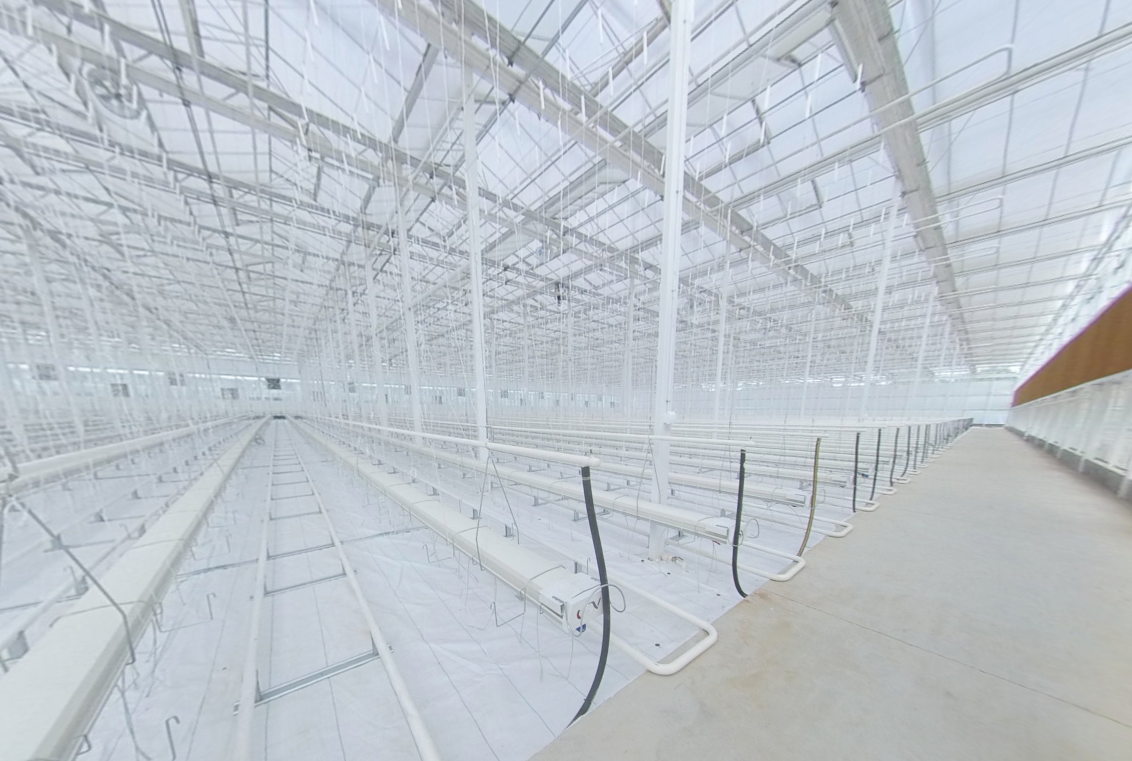

Hot dip galvanized main frame, glasshouse cover, roof window ventilation system, external shading system, internal shading system, insulation system, hot water pipe heating system, wet pad and extract fan cooling system, air circulation system, central air-conditioner system, fertigation system, misting spray system, water treatment system, water supply and storage system, nutrient medium recycling system, hanging type growing gutter system, lighting system, power distribution system, automated IoT system, etc.
